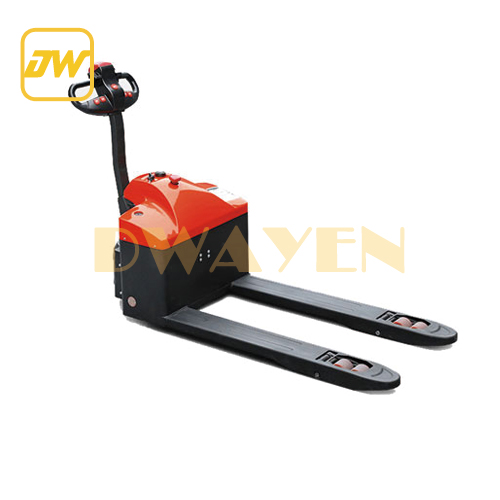

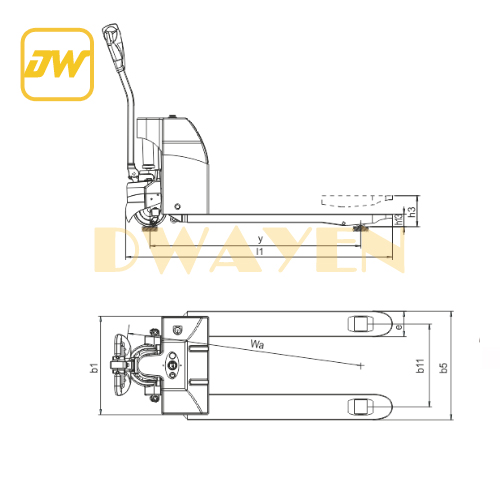

规格型号Model Number |
BD13A |
驾驶方式Driving Style |
步行式 |
额定载重Rated Capacity |
1300 |
载荷中心Load Center |
600 |
轴距Wheel Base |
1301 |
货叉尺寸Fork Size |
1150*160*55 |
货叉最大高度Max Fork Height |
85 |
货叉最低高度Min Fork Height |
205 |
最大起升行程Max. Lifting Height |
120 |
货叉外宽Outer Fork Width |
550/600/650/685 |
整机长度Overall Length |
1707 |
整机宽度Overall Width |
697 |
整车高度(含手柄)Overall Height (with handle) |
1181 |
整车高度(不含手柄)Overall Height (Without handle) |
744 |
转弯半径Turning Radius |
1547 |
通道宽度(托盘1000*1200) Channel width (Tray 1000*1200) |
1953 |
通道宽度(托盘800*1200) Channel width (Tray 800*1200) |
1920 |
最大行驶速度(满载)Maximum travel speed (full load) |
3/3.5 |
最大行驶速度(空载)Maximum travel speed (Without load) |
56/60 |
爬坡度(满载/空载) Grade (full load / without load) |
5/7 |
驱动电机Driving Motor |
DC 0.63 |
提升电机Lifting Motor |
DC 0.8 |
蓄电池Battery |
24/70 |
行车制动Service Brake |
电磁/再生 |
驱动轮Driving Wheel |
Ф252x67 |
承重轮Bearing Wheel |
Ф84x70(双轮) |
蓄电池重量Battery Weight |
48 |
整机重量Overall Weight |
275 |
