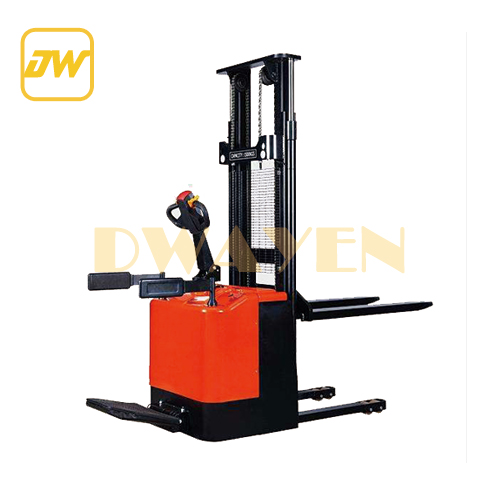

站驾式电动堆高车1000-1600KG
  • 规格型号Model Number

    DW10D16

    DW16D16

    Maximum load capacity(负载能力)

    kg

    1000

    1600

    with load center at(载荷中心距)

    mm

    600

    600

    Maximum lifting height(起升高度)

    mm

    1600

    1600

    Travel speed (without load)(无负载行驶速度)

    km/h

    6

    6

    Travel speed (with load)(负载行驶速度)

    km/h

    5

    5

    Lifting speed (without load)(无负载起升速度)

    mm/h

    140

    140

    Lifting speed (with load)(负载起升速度)

    mm/h

    120

    120

    Lowered speed (without load)(无负载下降速度)

    mm/h

    150

    150

    Lowered speed (with load)(负载下降速度)

    mm/h

    155

    155

    Ascend slope ability (without load )(空载最大爬坡能力)

    %

    7

    7

    Ascend slope ability (with load )     (负载最大爬坡能力)

    %

    5

    5

    Weight (without battery)(重量不含电池)

    kg

    945

    945

    Overall length of frame (整车长度)

    mm

    2150

    2150

    Overall width of frame (整车宽度)

    mm

    850

    850

    Mast lowered height(门架降至最低整车高度)

    mm

    2055

    2055

    Max height   (门架上升至最高整车高度)

    mm

    2110

    2110

    Wheelbase(轴距)

    mm

    1460

    1460

    Fork length (货叉长度)

    mm

    1150

    1150

    Fork width(货叉外侧宽度)

    mm

    680

    680

    Fork width(货叉内侧宽度)

    mm

    300

    300

    Fork thickness(货叉厚度)

    mm

    65

    65

    Fork lowered height(货叉降至最低高度)

    mm

    90

    90

    Min intersecting aisle width       (最小转弯通道宽度)

    mm

    2370

    2370

    Minimum turning radius (without platform) (不带踏板最小转弯半径)

    mm

    1670

    1670

    Minimum turning radius (with platform)    (带踏板最小转弯半径)

    mm

    2070

    2070

    Front wheel(承载轮)

    mm

    85*70

    85*70

    Drive wheel(驱动轮)

    mm

    230*75

    230*75

    Caster wheel(平衡轮)

    mm

    130*55

    130*55

    Wheel material(车轮类型)



    polyurethane

    Drive motor type (驱动电机类型)



    AC series motor

    Rated output(功率)

    kw

    1.5

    1.5

    Hoist motor type (起升电机类型)



    DC series motor

    Rated output(功率)

    kw

    2.2

    3

    Voltag(电压)

    V

    24

    24

    Capacity(容量)

    AH

    210/240/270

    Weight(重量)

    kg

    195/225/260
