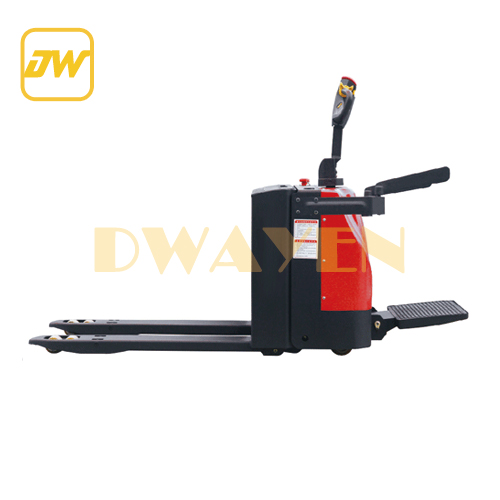

DB20A |
DB25A |
DB30A |
||
动力类型(Power Type) |
全电动(Full Electric) |
|||
载重(Load Capacity) |
kg |
2000 |
2500 |
3000 |
最大起升高度(Max.Lifting Height) |
H(mm) |
200 |
200 |
200 |
载荷中心(Load Center) |
C(mm) |
600 |
||
轮胎配置(Wheel Type) |
聚氨酯实心胎(Polyurethane solid tire) |
|||
货叉尺寸(Fork Size) |
mm |
1200*175 |
1200*175 |
1200*175 |
货叉外宽(Forks Spread) |
mm |
685/540 |
685/540 |
685/540 |
货叉最小离地间隙(Fork Clearance from the Ground) |
H1(mm) |
85 |
||
全长(踏板收起时)(Overall Length Pedal Closed) |
L(mm) |
1918 |
1918 |
1918 |
全宽(Overall Width) |
S(mm) |
780 |
780 |
780 |
转弯半径(踏板收起)(Turning Radius When Pedal Folded) |
Wa(mm) |
1760 |
1760 |
1760 |
前轮至叉端距(The Distance from Wheel Front to Fork End) |
mm |
180 |
||
最大行驶速度(Max.Walking Speed) |
Km/h |
4~5 |
||
爬坡能力(Grade Ability) |
% |
8/10 |
8/10 |
6/8 |
总重(Total Weight) |
kg |
~715 |
~715 |
~715 |
驱动轮(Drive Wheel) |
mm |
Ø230*75 |
||
前轮(Wheel Front) |
mm |
Ø80×80 |
Ø80×80 |
Ø80×80 |
平衡轮(Balance Wheel) |
mm |
Ø125×50 |
Ø125×50 |
Ø125×50 |
电池容量(Battery capacity) |
V/Ah |
24/210 |
24/210 |
24/210 |
充电机(Charger) |
V/A |
24/30 |
24/30 |
24/30 |
驱动马达(Driving Motor) |
Kw |
1.5 |
1.5 |
1.5 |
起升马达(Lifting Motor) |
Kw |
0.8 |
0.8 |
0.8 |
刹车(Brake) |
电磁式(Electromagnetic) |
|||
驱动控制类型(Drive Controlling Type) |
AC |
|||
行走调速方式(Walking Adjustable Type) |
霍尔式加速器(Holzer type accelerator) |
➤ CURTIS柯蒂斯电控,控制器多重自动保护系统。
➤阻尼减震弹簧无需频繁调节,即可主动根据路面状况调整立式驱动单元,降低地面对驱动单元的冲击,平衡了驱动 平衡轮的受力,提高了平稳运行效率。
➤ 高质量带缓冲液压泵站,噪音低,震动小,密封性好,起升下降平稳可靠。
➤ 防滑制动功能,使车子在失控或者斜坡行驶时,防止其下滑。
➤ 交流驱动系统,驱动无级调速,安全,静音,紧急反向装置/紧急制动开关。
➤ 多功能手柄,集成控制(加速、喇叭、紧急方向、升降按钮),人机设计操作更加舒适。
➤ Because of CURTIS electronic control, so we have multiple automatic protection system controllers.
➤ Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.
➤ High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.
➤ Anti-skid brake function prevent the car from declining when car driving out of control or at slope.
➤ AC driving system, Driven steepless speed regulation, safe, quiet, emergency reverse device /emergency brake switch.
➤ We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable
