型号规格 /Model Number

GD0608D

GD0810E

GD1012E

GD1214E

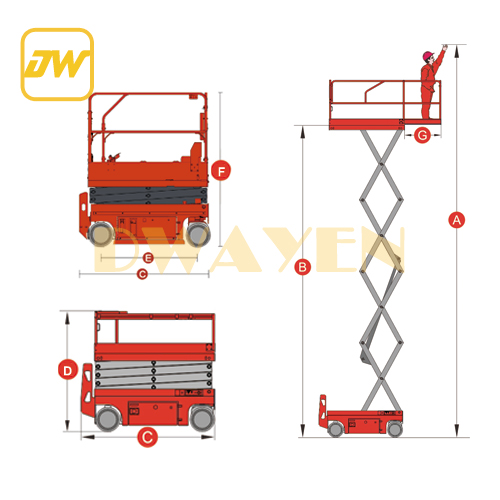

最大工作高度Maximum working height

8m

10m

12m

14m

最大平台高度Maximum platform height

6m

8m

10m

12m

整机高度（护栏立起）Folding maximum height(guardrail unfolding)

2.21m

2.34m

2.47m

2.59m

整机高度（护栏折叠）Folding maximum height(guardrail removed)

1.75m

1.86m

1.99m

2.17m

整机宽度Overall Width

0.81m

1.15m

1.15m

1.15m

整机长度Overall Length

2.48m

2.48m

2.48m

2.48m

平台尺寸Platform size

2.27x0.81m

2.27x1.12m

2.27x1.12m

2.27x1.12m

平台延伸长度Platform extend size

0.9m

0.9m

0.9m

0.9m

额定载荷Lifting capacity

380kg

450kg

320kg

320kg

最大允许风速Maximum wind speed

12.5m/s

12.5m/s

12.5m/s

12.5m/s

轴距Wheelbase

1.87m

1.87m

1.87m

1.87m

最小回转半径（外侧）Minimum turn radius(outer wheel)

2.10m

2.20m

2.20m

2.20m

最小回转半径（内侧）Minimum turn radius(inner wheel)

0m

0m

0m

0m

最小离地间隙（收拢）Minimumground clearance(folding)

10cm

10cm

10cm

10cm

最小离地间隙（起升）Minimumground clearance(rising)

1.9cm

1.9cm

1.9cm

1.9cm

整机重量Whole weight

1980kg

2380kg

2690kg

2980kg

蓄电池Battery

4x6v/225AH

4x6v 225AH

4x6v/225AH

4x12v/150AH

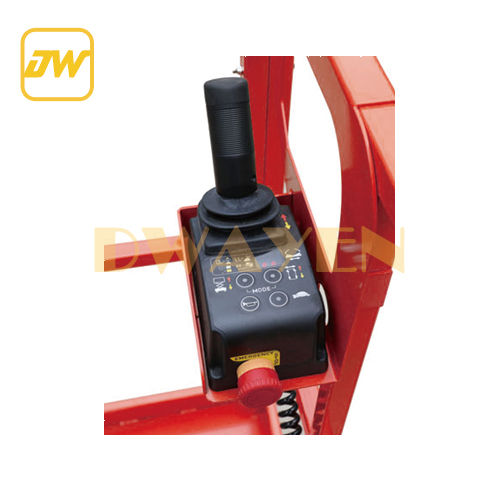

控制方式Way of control

电液比例控制Electro-hydraulic proportion control

最大工作压力Maximum working pressure

240Bar

240Bar

240Bar

240Bar

电源电压Power Voltage

24v

24v

24v

24v

轮胎尺寸Wheel size

381x127mm

381x127mm

381x127mm

381x127mm

最大爬坡定值Maxinum climbing ability

25%

25%

25%

25%

最大允许倾斜角度Maxinum working allowable angle

X-2,Y-3

X-2,Y-3

X-2,Y-3

X-2,Y-3

行驶速度（收拢状态）Running speed(folding)

4.5km/h

4.0km/h

4.0km/h

4.0km/h

行驶速度（起升状态）Running speed(rising)

0.8km/h

0.8km/h

0.8km/h

0.8km/h
